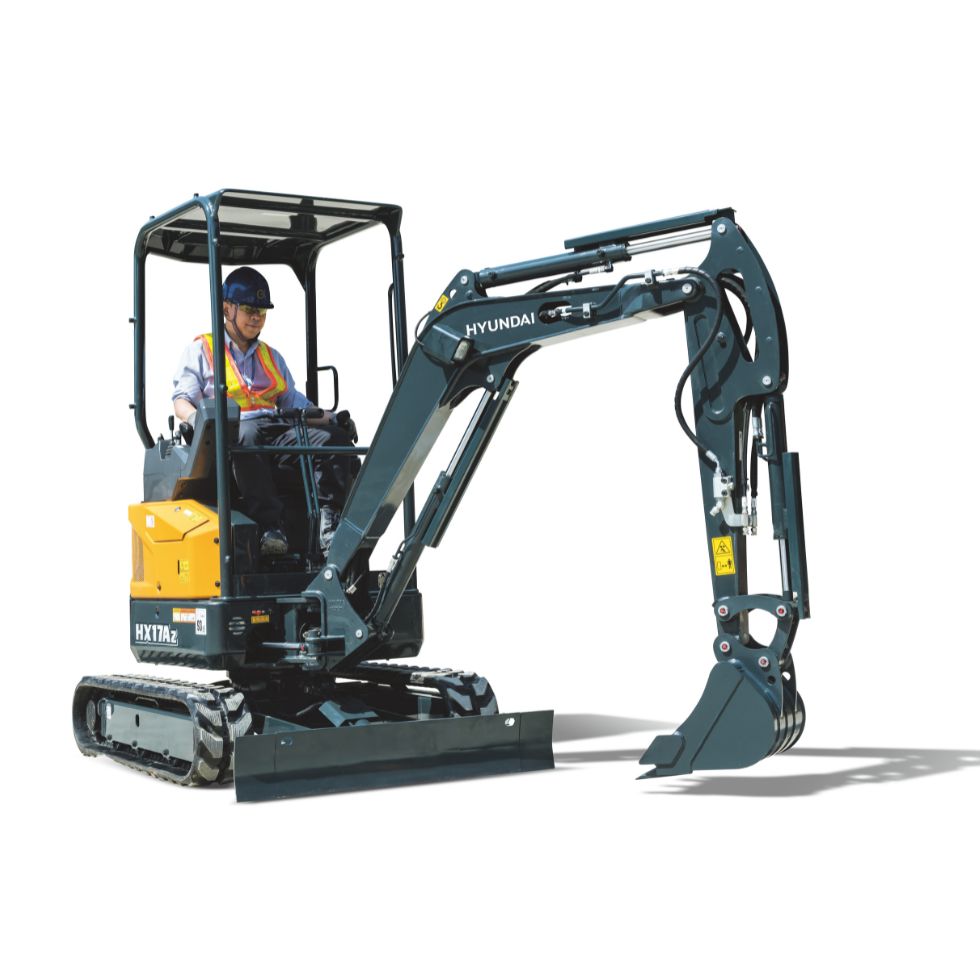

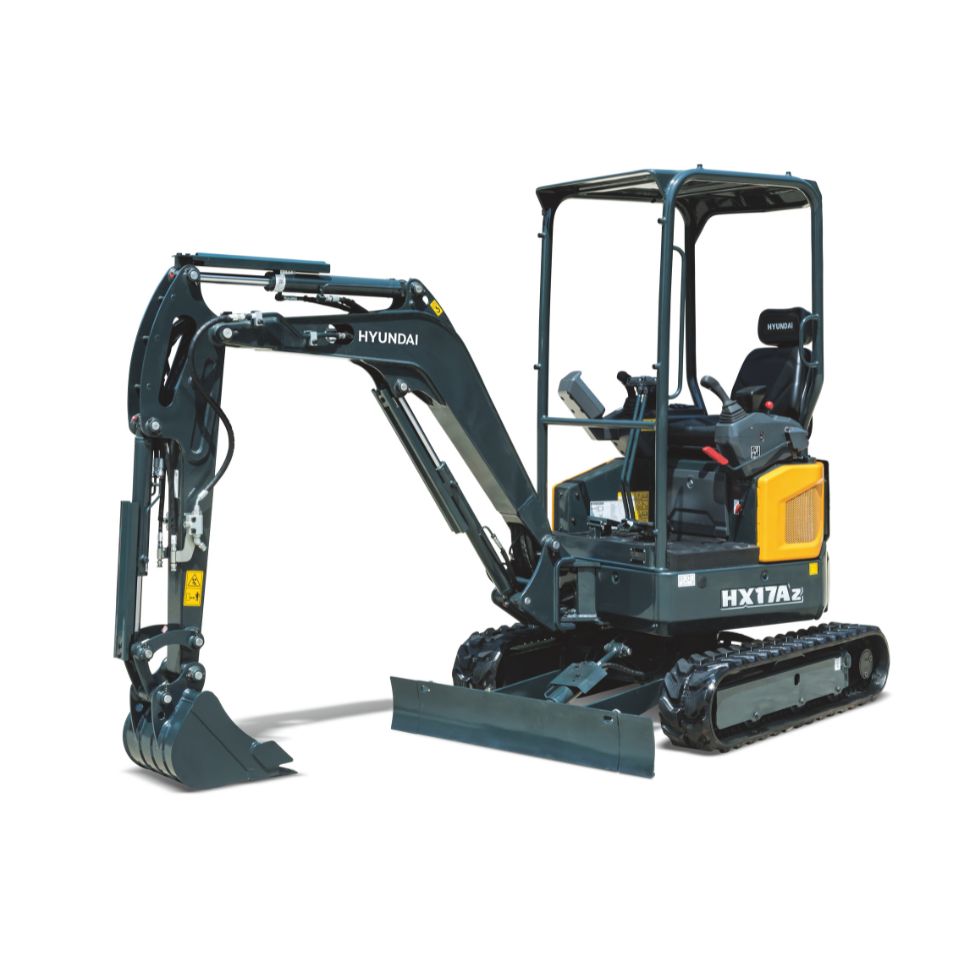

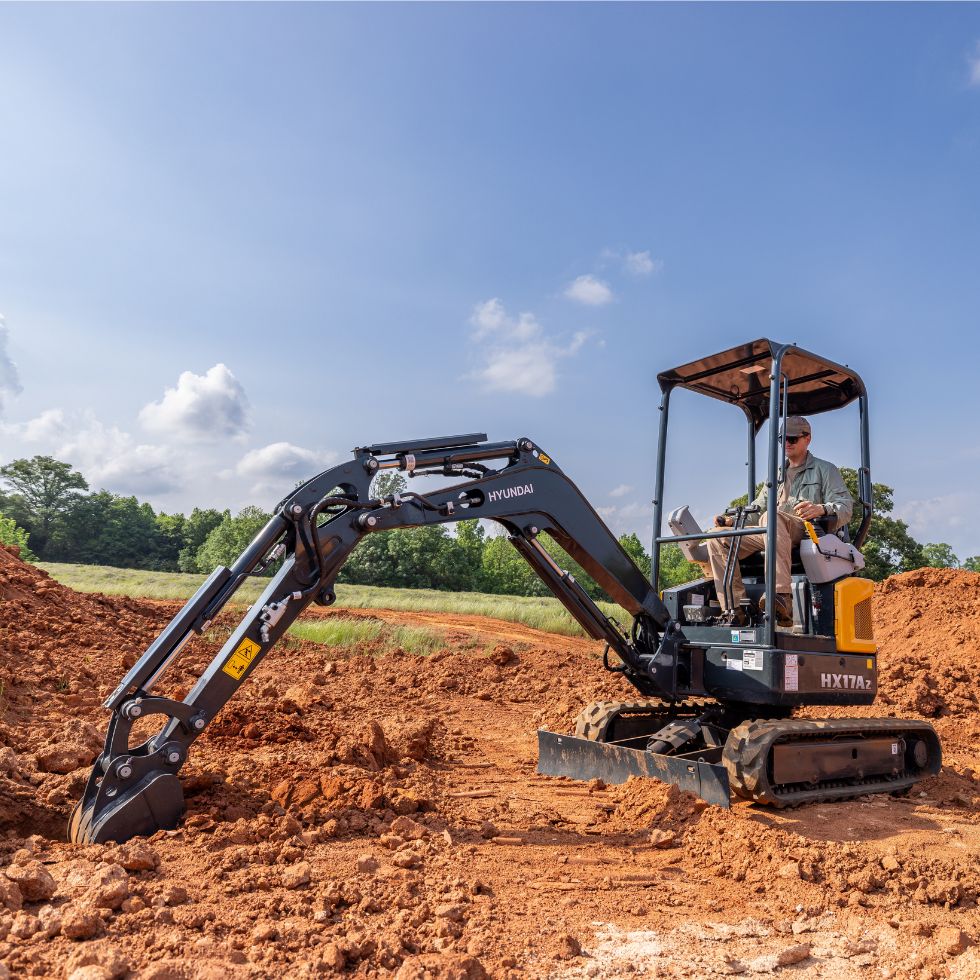

HX17AZ
Innovative hydraulic system technologies make the HX17AZ excavator fast, smooth and easy to control. The HX series is designed for maximum performance to keep the operator working productively. Operating a HX17AZ excavator is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs.
Net Power
16 hp @ 2,400 rpm / 11.9 kW @ 2,400
Operating Weight
4,370 Ibs / 1,980 kg
Standard bucket
0.05 yd³ / 0.04 m³
Technical detail
Engine model: Kubota D902-E4B
Net power: 16 hp @ 2,300 rpm
Operating weight: 1,980 kg
Bucket capacity: 0.04
Max travel speed: 4.1 km/h
Max. digging depth: 2,440 mm
Max. digging reach: 4,100 mm
Tail swing radius: 720 mm
Bucket breakout force (ISO): 1,664 kg
Arm crowd force (ISO): 822 kg
Configuration (Compact, Crawler, Wheeled, Spacialty): Compact
See the technical specifications
Performance
KUBOTA Tier 4 Final Engine
The HX17AZ features a KUBOTA D902 Tier 4 Final diesel engine with a vertical, water-cooled 4-cycle direct injector.
Auxiliary Hydraulic Flow
Auxiliary hydraulic flow is adjustable through the 5-inch LCD cluster.
Dozer Blade
Blade height is adjusted by maneuvering the joystick.
Zero-Tail Swing
The HA17AZ has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.
